雙金屬溫調式蒸汽疏水閥 Bimetallic trap of temperature adjustment
產品介紹：TB型雙金屬片蒸汽疏水閥適用于散熱器、換熱器、夾套鍋、加熱盤管、烘干機、消毒器、層壓機等。
結構特點：1、排放溫度可在閑調解，安裝姿勢自由，內件全不銹鋼。
2、利用高溫凝結水行程水封式，有效減少蒸汽泄漏。
3、動作靈敏，抗水擊，無噪音，排空性能優良。
4、結構簡單，容易維修保養，適用高溫蒸汽管線。
Inroduction：TB bimetallic steam trap is suitable for radiator，heat exchanger，drier，heating pipelines and sterilizer.
Structure:1.The temperature for allocation can be adjusted online and installation can be conducted in free way.All the parts inside are of stainless steel.
2.The condensed water of high temperature will form water sealing to effectively reduce the steam leakage.
3.The action is agile and excellent abilities to resist to resist water beating,and to discharge water;not produce noise.
4.Simple structure to facilitate to facilitate maintenance,being appropriate for steam pipelines of high temperature.
主要零件材料和性能參數
殼體壓力等級 Shell pressure rank |
1.6、2.5mpa | 最大工作壓差 Biggest work differential pressure |
2.5mpa | 允許背壓率 Permission back pressure rate |
≥75% |
| 負荷泄露率 Load divulging rate |
0% | 適用過熱蒸汽 Has been suitable the hot steam |
優秀 Outstanding |
節能效果 Energy conservation effect |
優秀 Outstanding |
| 使用介質 Applied medium |
蒸汽、凝結水 Steam，condensing water |
排放方式 Discharges the way |
連續方式 Continual way |
抗水擊 Anti-pressure surge |
優秀 Outstanding |
技術參數表，Technological parameter date
Model 產品型號 |
Nominal diameter 公稱通徑 DN |
Connection 連接方式 |
Pressure raring 使用壓力 MPa |
Max allowable（℃） 最高允許溫度 |
Adjustment Rating（℃） 調整溫度范圍 |

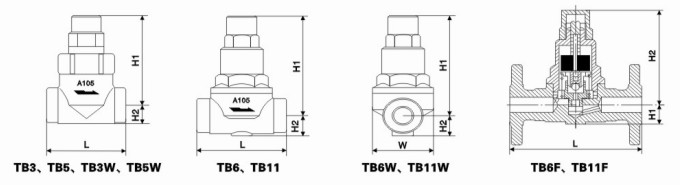

External diamensions（mm） 外型尺寸 |
Re.weight 參考重量 |
|||
| L | H1 | H2 | W | |||||||
| TB6 | 15~20 25 |
Thread 螺紋 | 0.01~1.6 | 220 | 50~180 | 90 95 |
108 | 25 | 63 | 1.8 |
| TB6F | 15~20 25 32~50 |
Flange 法蘭 | 0.01~1.6 | 220 | 50~180 | 150 160 230 |
108 | 25 | 63 | 3.2 3.9 5.6 |
| TB6W | 15~20 25 |
Socket weld 承插焊 |
0.01~1.6 | 220 | 50~180 | 90 95 |
108 | 25 | 63 | 1.8 |
| TB11 | 15~20 25 |
Thread 螺紋 | 0.01~1.6 | 220 | 50~190 | 90 95 |
108 | 25 | 63 | 1.8 |
| TB11F | 15~20 25 32~50 |
Flange 法蘭 | 0.01~1.6 | 220 | 50~190 | 150 160 230 |
108 | 25 | 63 | 3.2 3.9 5.6 |
| TB11W | 15~20 25 |
Socket weld 承插焊 |
0.01~1.6 | 220 | 50~190 | 90 95 |
108 | 25 | 63 | 1.8 |
| TB3 | 15~20 25 |
Thread 螺紋 | 0.01~1.6 | 350 | 50~190 | 80 85 |
90 | 23 | 56 | 1.5 |
| TB3F | 15~20 25 |
Flange 法蘭 | 0.01~1.6 | 350 | 50~190 | 150 160 |
90 | 23 | 56 | 3.3 4.2 |
| TB3W | 15~20 25 |
Socket weld 承插焊 |
0.01~1.6 | 350 | 50~190 | 80 85 |
90 | 23 | 56 | 1.5 |
| TB5 | 15~20 25 |
Thread 螺紋 | 0.01~2.1 | 350 | 50~200 | 80 85 |
90 | 23 | 56 | 1.5 |
| TB5F | 15~20 25 |
Flange 法蘭 | 0.01~2.1 | 350 | 50~200 | 150 160 |
90 | 23 | 56 | 3.3 4.2 |
| TB5W | 15~20 25 |
Socket weld 承插焊 |
0.01~2.1 | 350 | 50~200 | 80 85 |
90 | 23 | 56 | 1.5 |
