產品介紹：UFS型汽水分離器，是利用蒸汽流向急劇轉換方式、將蒸汽和蒸汽中含有的懸浮狀水滴分離開，提高了產品質量和生產效率。
1、為蒸汽設備提供高干度蒸汽，送往用汽設備，提高設備的熱效率，降低管道內的沖擊力。
2、并防止水擊，而分離出來的凝結水，由分離器下部的疏水閥排除。
3、UFS2型汽水分離器也適用于從壓縮空氣中分離凝結水。
Introduction：UFS gas and water separator make the steam and water apart through the abrupt change of the direction in which the steam flows,so as to improve the quality and efficiency of its operation.
1.Improve the dry steam of steam equipment to raise the heating efficiency of the equipment and reduce the impact to the pipelines.
2.Prevent water beating;the condensed water separated will be dischaeged from the trap below the separator;
3.Ufs2 gas and water separator os also appropriate for separating the condensed water from the condensed air.
技術參數表 Technological parameter date
| Model 產品型號 |
Nominal diameter 公稱通徑（DN） |
Connection 連接方式 |
Pressure rating（MPa） 使用壓力 |
Max allowable（℃） 最高允許溫度 |

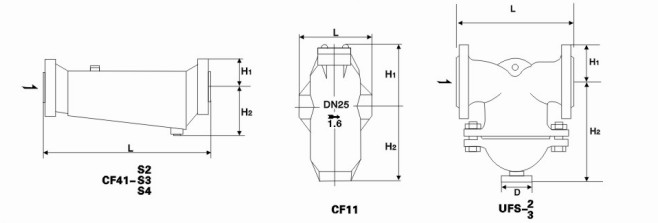

Extermal dimensions（mm）外形尺寸 | |||
| L | H1 | H2 | D | |||||
| CF11 | 15~20 | Thread螺紋 | 0.01~2.5 | 350 | 130 | 115 | 156 | 螺紋 |
| 25 | 150 | 155 | 222 | |||||
| CF41 | 20~32 | Flange法蘭 | 0.01~2.5 | 350 | 320 | 65 | 100 | 螺紋 |
| CF41 | 40~50 | Flange法蘭 | 0.01~2.5 | 350 | 460 | 80 | 140 | 螺紋 |
| 65 | 490 | 90 | 180 | |||||
| CF41 | 80~100 | Flange法蘭 | 0.01~2.5 | 350 | 510 | 110 | 190 | 螺紋 |
| CF41 | 125~150 | Flange法蘭 | 0.01~2.5 | 350 | 590 | 145 | 200 | 螺紋 |
| UFS1 | 50 | Flange法蘭 | 0.01~2.5 | 350 | 270 | 80 | 260 | DN25法蘭 |
| 65 | 310 | 90 | 275 | |||||
| UFS2 | 80 | Flange法蘭 | 0.01~2.5 | 350 | 400 | 98 | 330 | DN25法蘭 |
| 100 | 108 | 108 | ||||||
| UFS3 | 150 | Flange法蘭 | 0.01~2.5 | 350 | 450 | 140 | 410 | DN25法蘭 |
| 200 | 168 | 435 | ||||||
| UFS4 | 250 | Flange法蘭 | 0.01~2.5 | 350 | 550 | 203 | 517 | DN25法蘭 |
