規格 |
ΦD1 |
ΦD2 |
N-Φd |
D |
d |
軸向位移 |
橫向位移 |
偏轉角度 |
重量（kg）Weight |
|
|
伸長Extrnsion |
壓縮Compression |
Horizontal displacement (mm) |
Deflexion angle |
|||||||
|
DN50 |
165 |
125 |
4-18 |
105 |
20 |
7 |
10 |
10 |
15° |
5.5 |
|
DN65 |
185 |
145 |
4-18 |
115 |
20 |
7 |
13 |
11 |
15° |
6.7 |
|
DN80 |
200 |
160 |
8-18 |
135 |
22 |
8 |
15 |
12 |
15° |
7.7 |
|
DN100 |
220 |
180 |
8-18 |
150 |
24 |
10 |
19 |
13 |
15° |
9.4 |
|
DN125 |
250 |
210 |
8-18 |
165 |
26 |
12 |
19 |
13 |
15° |
12.7 |
|
DN150 |
285 |
240 |
8-22 |
180 |
26 |
12 |
20 |
14 |
15° |
15.8 |
|
DN200 |
340 |
295 |
12-22 |
210 |
30 |
16 |
25 |
22 |
15° |
20 |
|
DN250 |
405 |
355 |
12-26 |
230 |
32 |
16 |
25 |
22 |
15° |
29.22 |
|
DN300 |
460 |
410 |
12-26 |
245 |
32 |
16 |
25 |
22 |
15° |
32.8 |

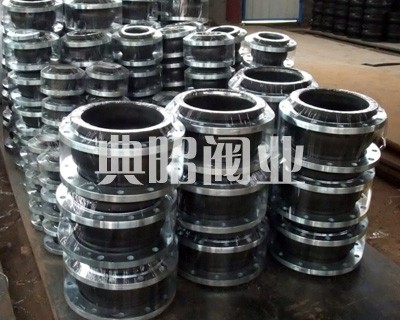

點擊圖片查看原圖
